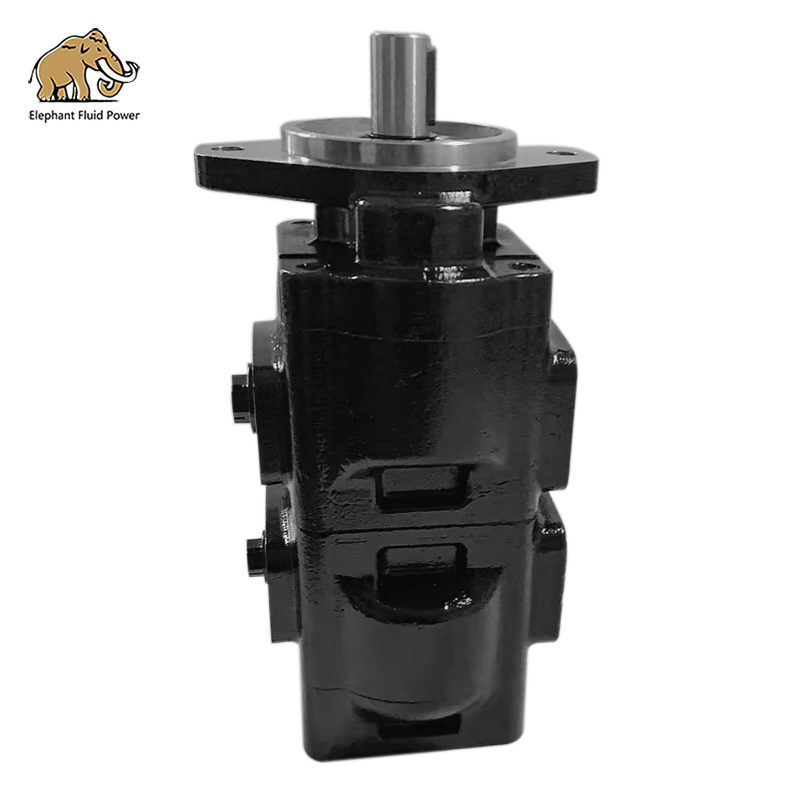

JCB 333/G5392 Hydraulic Gear Pump For 3cx 4cx Backhoe Loader Factory Sales Good Quality

Brand Name : Elephant Fluid Power

Model Number : 333/G5392

Certification : ISO9001,CE

Place of Origin : China

MOQ : 1

Price : 215USD-430USD

Supply Ability : 300 sets per month

Delivery Time : 15-25 days

Packaging Details : Carton box,wooden case

Material : Iron Cast

Application : Backhoe loader repair maintain

Interchange : 100%

Quality : as original

Service : After-sales services

Variety : Plenty

Warranty : 12 months

Contact Now

JCB 333/G5392 Hydraulic Gear Pump For 3cx 4cx Backhoe Loader Factory Sales Good Quality

Elephant Fluid Power makes JCB 333/G5392 Hydraulic Gear Pump For 3cx 4cx Backhoe Loader Factory Sales Good Quality,equivalent quality as original,competitive price,fast lead time,one year warranty since sales.

Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 275 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 220/925586 - 333/C5234 - 333/G5392

Weight

  • 26KG

JCB 333/G5392 Hydraulic Gear Pump For 3cx 4cx Backhoe Loader Factory Sales Good Quality

JCB 333/G5392 Hydraulic Gear Pump For 3cx 4cx Backhoe Loader Factory Sales Good Quality


JCB pumps we supply:

332/F9030 20/925580 20/903300 4074
333/G5390 20/925579 20/925592
332/F9029 20/925339 20/925357
332/G7135 20/925338 20/925732
332/F9032 20/925581 20/925588
332/F9031 20/925340 20/925356
333/G5391 20/925341 20/925591
220/925586 20/925366 20/918300
333/C5234 20/925337 20/903000
333/G5392 20/925578 7029120047
332/F9028 20/925586 7029120005
332/E6671 20/912800 7049520006
919/75002 20/903100 7049532007
20/911200 20/902900 7029530002
20/902900 20/903200

Our product range

Hydraulic pump parts Cylinder block Press pin
Piston motor Piston shoe Snap ring
Piston pump Retainer plate Coil spring
Gear pump Ball guide Disk spring
Charge pump Valve plate Barrel washer
Pilot pump Shoe plate Oil seal
Vane pump Bearing plate FriCAATion plate
Repair OEM parts Swash plate Steel plate
Motor spare parts Drive shaft Hydraulic pump parts

Company Profile

Elephant Fluid Power Co. Ltd. is a professional manufacturer of hydraulic pumps,hydraulic motors,pump parts and gearbox reducer. We have exported to more than 80 countries and areas,we have equivalent quality as original,good price,fast lead time,good after-sales services.

We will be your best friends and partner.Look forward to cooperating with you.
