JCB 332/F9030 Hydraulic Pump, Parker 7029120025, HYDRAULIC PUMP MILLING 36/29 CCR Genuine replace

From China we manufacture and export hydraulic gear pumps for JCB

JCB Construction Equipment Aftermarket Replacement Spare Parts

Quick View:

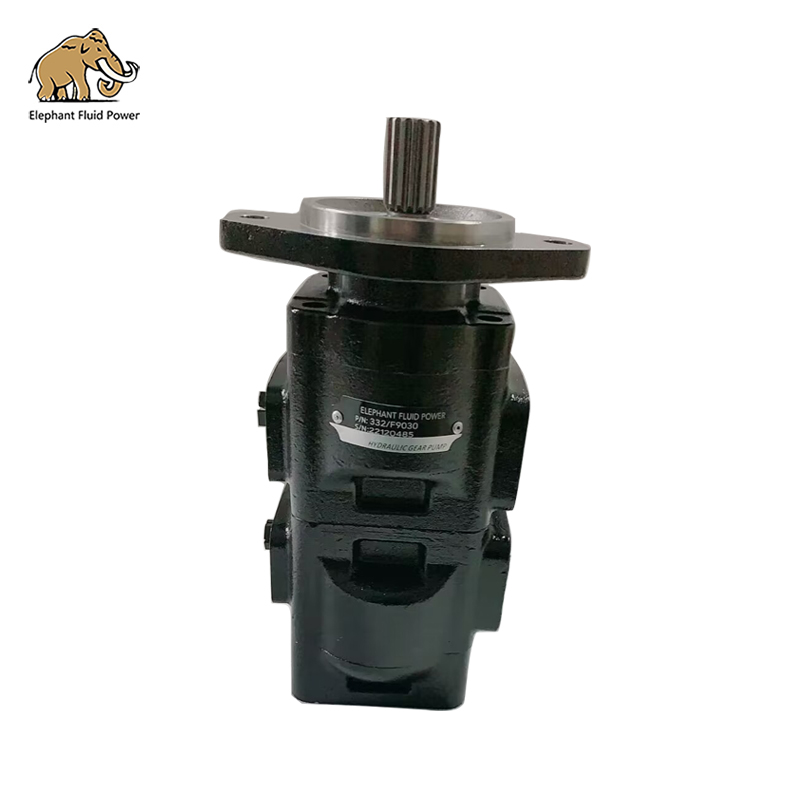

JCB 332/F9030 Genuine Parker / JCB double Hydraulic Pump replacement, size 36/29 CCR

Key Information
Rotation: Clockwise (looking from shaft end)
1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
SAE B 2 hole mounting flange
Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
Single 2” SAE flange inlet
Front pump outlet: 1 1/16”-12 UNF threaded
Rear pump outlet: 7/8”-14 UNF threaded
Maximum working pressure on front pump: 250 bar
Maximum working pressure on rear pump: 275 bar
Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers
20/925580 - 332/F9030

Machine Fitment
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CXM New Zealand MILITARY 9812/0050
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CX-PC Precision Control (Servo) 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T-PC Precision Control (Servo) 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CXS AWS 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 100 HP BUILDS 4CXM (FRANCE) FRENCH MILITARY 9812/0070
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 4CX 9812/0010
PUMP 36/29 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CXS-PC Precision Control (Servo) 9812/0010
ENGINE TRANSMISSION Package 475/M1504 MISCELLANEOUS . 9802/1010
ENGINE TRANSMISSION Package 475/M1005 MISCELLANEOUS . 9802/1010
LOOSE PARTS Package 475/M4146 MISCELLANEOUS . 9802/1010

Features:

1. The appearance, size and function are the same as Parker/JCB
2. Excellent quality
3. Reasonable price
4. Many models, fast delivery
5, 12 warranty

If you are a user, please find product information on this page, if you need more information please contact us
If you are a reseller, please contact us to discuss how we can work together

Related JCB Pump: 1 stage, 2 stage, 3 stage

More JCB parts available by us:

JCB hydraulic gear pump

JCB hydraulic piston pump

JCB hydraulic steering unit

JCB swichs

Reference modle numbers we have:

Who we work with?
JCB distributors, users
Parker distributors, users

Backhole Manufacturers
Backhole service providers
Backhole Spare parts Distributors

About Us:
From China, we design and manufacture hydraulic parts to cater for heavy duty applications and their reputation for quality and reliability is second to none. We manufacture and stock hydraulic parts for machine build, assembly, refurbishment, repair, maintenance and service.

If you send request list, we will quote.

332/F9030 JCB Hydraulic Pump

7029120025 Parker Hydraulic Pump

JCB 332/F9030 Hydraulic Pump, Parker 7029120025, HYDRAULIC PUMP MILLING 36/29 CCR Genuine replace Images
