Technical Data:
Nominal Pressure: 420 bar (6000 psi) and Peak Pressure 480 bar (7000 psi)
Displacement from 63.7 to 124,8 cm3/r (3,89 to 7,62 in3/r)

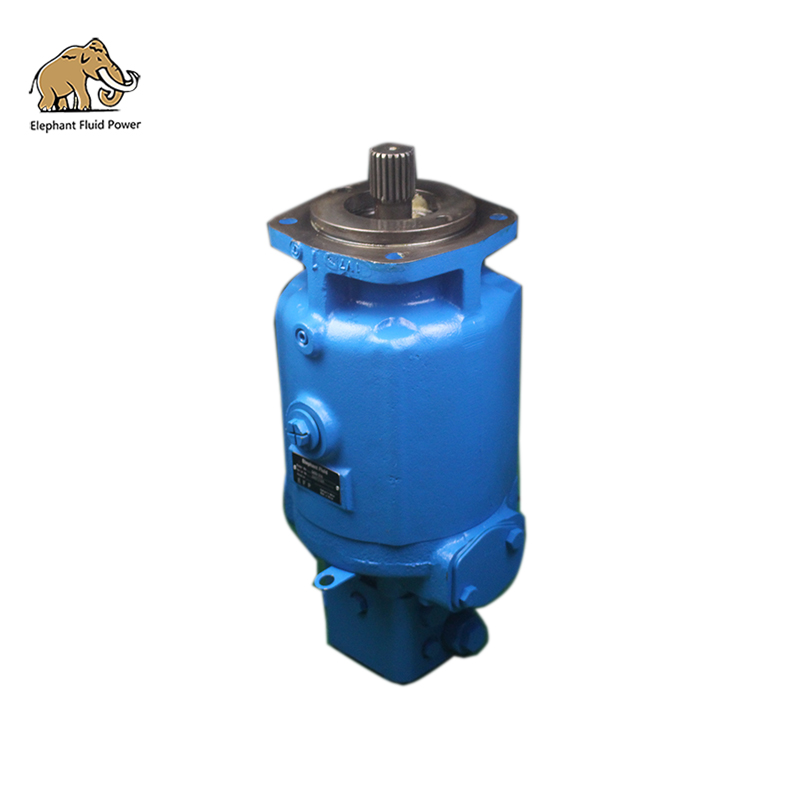

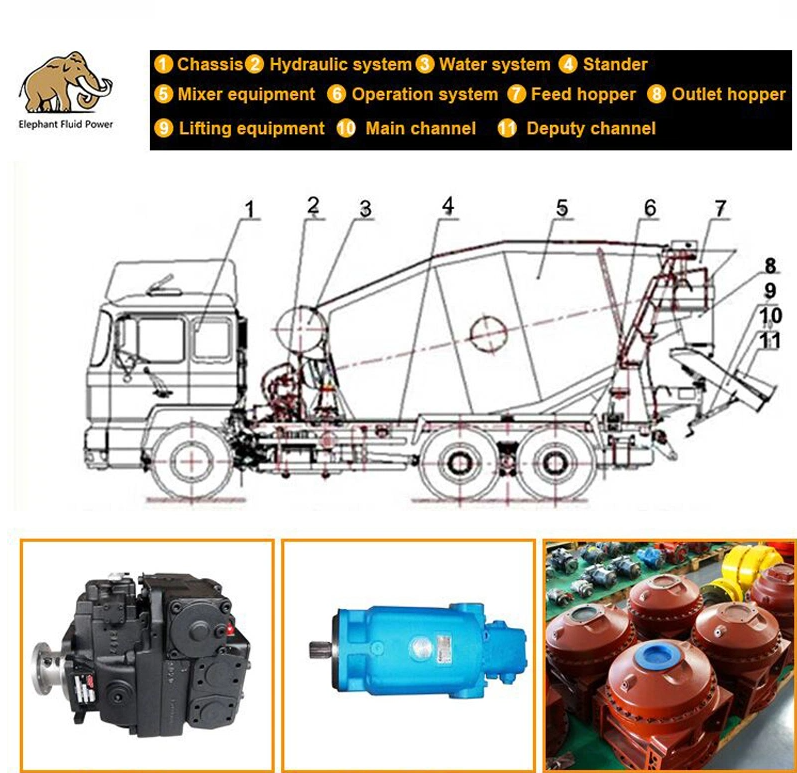

Elephant Fluid Power has the lead position in providing reliable and durable system solutions for transit mixers-vehicles on which downtime can mean disaster. Whether the truck is traveling down a highway or idling at a traffic light, the drum must maintain a consistent rotation speed. That's no problem when our product is on the inside.Elephant pump and motor provide the high pressure and high flow required to keep drums rotating.
Advanced cylinder barrel design - permits high speed and pressure.
Fixed clearance slipper hold down - on Models 39 through 64 allows operation at high speed and reduces friction. Model 76 is a ball guide unit.
Pistons - have long engagement with cylinder bore resulting in low leakage.
Hydraulic servo control - provides low effort operation with low control pressure. Large servo pistons hold swash plate position and provide damping.
Large case drain ports - minimize case back pressure.
Table of values (theoretical values, without efficiency and tolerances; values rounded)
| Eaton HHD motor | 3933 | 4633 | 5433 | 6433 | 7630 |
| Displacement | in3/rev | 3.89 | 4.6 | 5.44 | 6.44 | 7.62 |
| cm3/rev | 63,7 | 75,3 | 89,1 | 105,5 | 124,8 |
| Nominal Pressure* | psi | 6000 | 6000 | 6000 | 6000 | 6000 |
| (bar) | (420) | (420) | (420) | (420) | (420) |
| Peak Pressure** | psi | 7000 | 7000 | 7000 | 7000 | 7000 |
| (bar) | (480) | (480) | (480) | (480) | (480) |
| Maximum | rpm @ 18° | 4160 | 4160 | 3720 | 3720 | 2775 |
| Shaft Speed | rpm @ 10° | 5380˜ | 5380˜ | 4810˜ | 4810˜ | 3425˜ |
| Maximum | lb-in | 3511 | 4149 | 4916 | 5807 | 6911 |
| Output Torque*** | Nm | 397 | 469 | 556 | 656 | 781 |
We have Hydraulic Pump and motors for concrete pump truck and mixers:
● 470 cc, 500 cc, 750 cc auger motors
● A7VO, A11VO, A11VLO, A10VSO, A4VG, A4VSO, A2FO Series hydraulic piston pumps
● Gear pump, charge pump
also we have Truck Mixer Spare Parts:
● A4VTG, PV22, PV23, A2FM, Eaton 54.46 Series hydraulic piston pumps and motors
Gearbox for concrete mixers : PMB7.5 , PMP7.5sp gearbox , PMB 7.1R 130 gearbox , ZF P3301 gearbox , CML10 gearbox CML16 gearbox , ZF gearbox PLM-9 PLM-7 gearbox , P4300 gearbox , TOP P90S gearbox , DD33 gearbox,etc.
We will support our client develop and make more success in your local market,we also offer technical support and provide warranty for your products.
Let’s became partners and work together,we can change the world together.
Product Tags:
|
|

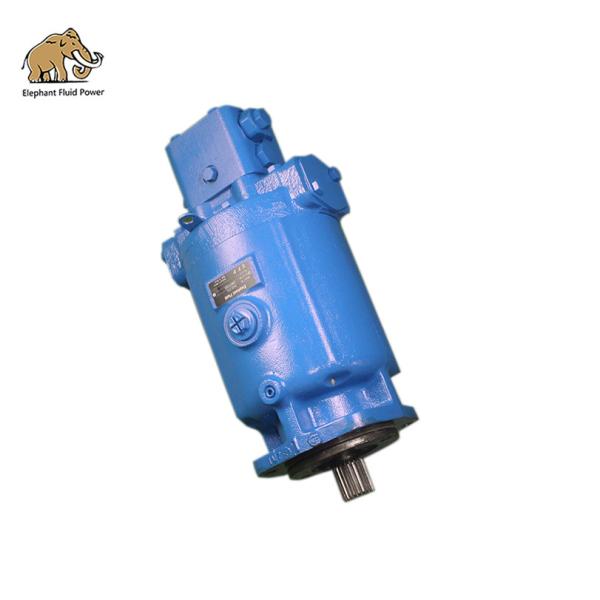

CE 5433 Concrete Mixer Hydraulic Motor Repair Maintain Images
|
