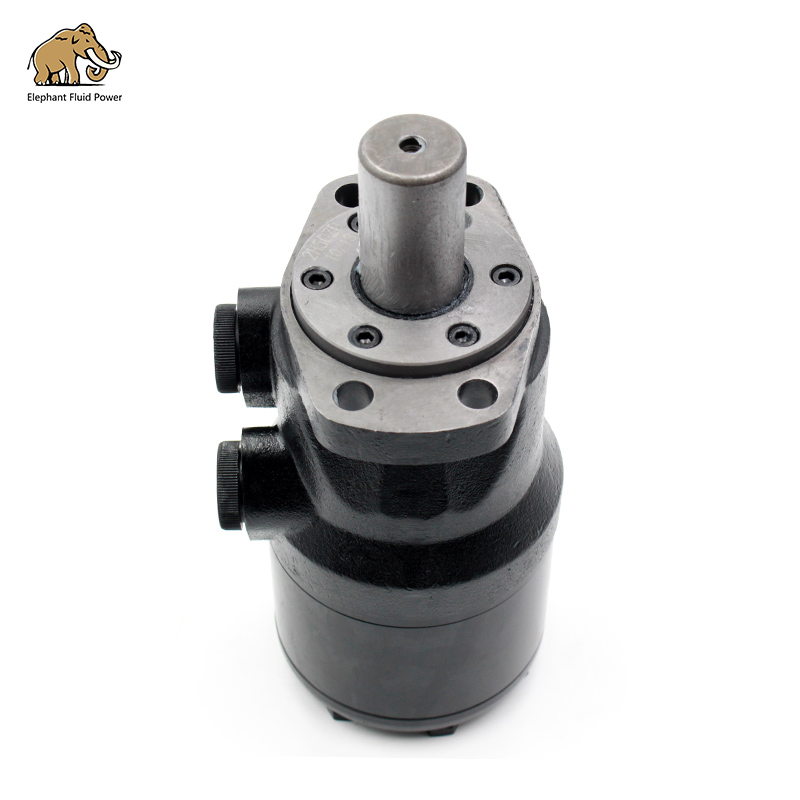

Concrete Pump Spare Parts BMH500 / OMH500 Hydraulic Motors
ELEPHANT Fluid Power is a hydraulic power expert,we provide hydraulic pumps,hydraulic motors, pump parts and gearbox reducer for concrete pump truck and mixers.Our BMH500 Motor equals Danfoss OMH500,M+S Mh500 motor,it is used for the manufacuture,rebuild,repair and maintaince of concrete pump truck,our quality is equivalent as them,we have better price,faster delivery time,best after sale services.
Characteristic features
1. BMH / OMH series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
2. Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
3. Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
4. Special design in the driver-linker and prolong operating life.
5. Special design for distribution system can meet the requirement of low noise of unit.
6. Compact volume and easy installation.
Specifiion
| BMH500 | Danfoss OMH500 | M+S MH500 |
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 |
| Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 |
| Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| | int | 439 | 348 | 282 | 220 | 184 |
| Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| | int | 20 | 20 | 20 | 19 | 16 |
| Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| | int | 439 | 348 | 282 | 220 | 184 |
| Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| | int | 90 | 90 | 90 | 90 | 90 |
| Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 |
This motor is widely used for these concret pump trucks:
KCP Concrete Pump truck
Liebherr Concrete Pump truck
XCMG Concrete Pump truck
Vitale-Robinson Concrete Pump truck
CIFA Concrete Pump truck
Junjin Concrete Pump truck
Putzmeister Concrete Pump truck
Schwing Concrete Pump truck
Latrobe Concrete Pump truck
Elephant Fluid Power has exported to more than 80 countries,such as USA,Canada,Germany, Spanish, Turkey,Poland,Mexico,Brasil,Ect..We have the best quality and brand in the world,if you need any product you can contact us.
