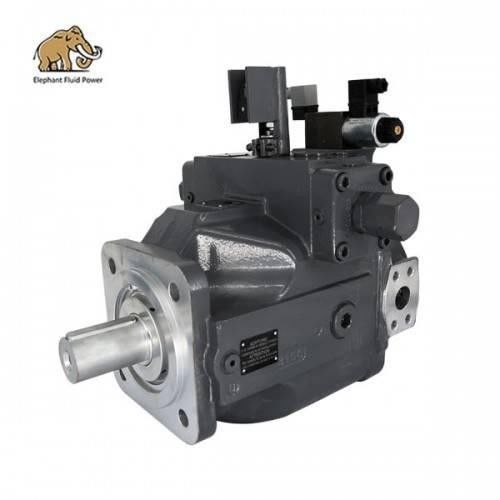

A4VSO Variable Displacement Axial Piston Pump

Brand Name : Elephant Fluid Power

Model Number : A4VSO

Certifiion : ISO9001

Place of Origin : China

MOQ : 1 set

Price : More favorable price

Payment Terms : TT,Paypal,Western Union

Supply Ability : 30000 sets per month

Delivery Time : 5-15 days

Packaging Details : Carton,wooden or as your requirements

Material : Cast

Usage : Replacement for Hydraulic pump,pump repair

Advantage : Good quality and delivery fast

Design : Swashplate Design

Character : Excellent suction characteristics

Contact Now

Rexroth A4VSO Series Axial Piston Variable Pump

Hydraulic axial piston pump A4VSO71, A4VSO125, A4VSO180, A4VSO250
Robust high pressure pump for industrial appliions
Size 40 … 1000
Nominal pressure 350 bar
Maximum pressure 400 bar
Open circuit
Metric version

A4VSO Variable Displacement Axial Piston Pump


Features
Robust pump with very long service life
Low operating noise
Short control response times
Excellent suction characteristics
Through drive for mounting of further pumps up to same nominal size
Swashplate design

Technical Data

Table of values (theoretical values, without efficiency and tolerances; values rounded)

Nominal size A4VSO71 A4VSO125 A4VSO180 A4VSO250
Nominal pressure p N bar 350 350 350 350
Maximum pressure pmax bar 450 450 450 450
Displacement Vg max cm³ 71 125 180 250
Speed Max. speed n max rpm 2200 1800 1800 1500
Flow at n max q V max l/min 156 225 324 375
Power Δ p = 350 bar P max kW 91 131 189 219
Torque Δ p = 350 bar Tmax Nm 395 696 1002 1391
Weight (approx.) m kg 53 88 102 184
Nominal size A4VSO355 A4VSO500 A4VSO750 A4VSO1000
Nominal pressure p N bar 350 350 350 350
Maximum pressure pmax bar 450 450 450 450
Displacement Vg max cm³ 355 500 750 1000
Speed Max. speed n max rpm 1500 1320 1000
Flow at n max q V max l/min 533 660 1000
Power Δ p = 350 bar P max kW 311 385 525 583
Torque Δ p = 350 bar Tmax Nm 1976 2783 4174 5565
Weight (approx.) m kg 207 320 460 605

Elephant Fluid Power specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment
spare parts.
A4VSO Variable Displacement Axial Piston Pump
Rexroth A4VSO180DFE1 Piston Pumps​ on Sale, Short lead time, Best price!!!
R902428384 AA4VSO180DFE1/30L-PPB25K34-S1391
R902562652 AA4VSO180DFE1/30R-EPB25U07-S2079
R902490361 AA4VSO180DFE1/30R-EZB25U07-S1928
R902545524 AA4VSO180DFE1/30R-EZB25U99-S1279
R902492616 AA4VSO180DFE1/30R-FPB25N00
R902539333 AA4VSO180DFE1/30R-FZB25U99
R902430589 AA4VSO180DFE1/30R-PPB13N00
R902406908 AA4VSO180DFE1/30R-PPB13N00E
R902553036 AA4VSO180DFE1/30R-PPB13N00-S1463
R902459508 AA4VSO180DFE1/30R-PPB25N00
R902553826 AA4VSO180DFE1/30R-PPB25N00-S1463
R902487734 AA4VSO180DFE1/30R-PZB2
R902488246 AA4VSO180DFE1/30R-PZB2
R902439631 AA4VSO180DFE1/30R-PZB25N00
R902475189 AA4VSO180DFE1/30R-PZB25N00-S1763
R902463600 AA4VSO180DFE1/30R-PZB25U34
R902463602 AA4VSO180DFE1/30R-PZB25U99
R902519808 AA4VSO180DFE1/30R-PZB25U99-S1463
R902555184 AA4VSO180DFE1/30R-VZB25U17-S2078
R902565836 AA4VSO180DFE1/30R-VZB25U24-S2078
R902519856 AA4VSO180DFE1/30R-VZB25U31-S2078
R902477114 AA4VSO180DFE1/30R-VZB25U34
R902491431 AA4VSO180DFE1/30R-VZB25U34-S1461
R902539207 AA4VSO180DFE1/30R-VZB25U34-S2078
R902574628 AA4VSO180DFE1/30R-VZB25U57-S2078
R902540300 AA4VSO180DFE1/30R-VZB25U68-S2078
R902477113 AA4VSO180DFE1/30R-VZB25U99
R902520887 AA4VSO180DFE1Y/30L-PPB13N00
R902436352 AA4VSO180DFE1Y/30R-PPB13N00
R902570946 AA4VSO180DFE1Y/30R-PPB25N00
R902548498 AA4VSO180DFE1Y/30R-PPB25U34
R902471738 AA4VSO180DFE1Y/30R-PZB25N00
R902514663 AA4VSO180DFE1Z/30R-EZB25U07-S1928
R902497150 AA4VSO180DFE1Z/30R-FPB13N00
R902446428 AA4VSO180DFE1Z/30R-PPB13K27
R902439607 AA4VSO180DFE1Z/30R-PPB13N00
R902486571 AA4VSO180DFE1Z/30R-PPB13N00-S1873
R902464720 AA4VSO180DFE1Z/30R-PPB25N00
R902456355 AA4VSO180DFE1Z/30R-PPB25N00-S1464
R902447398 AA4VSO180DFE1Z/30R-PZB13K34
R902518655 AA4VSO180DFE1Z/30R-PZB13N00
R902519280 AA4VSO180DFE1Z/30R-PZB25N00
R902492908 AA4VSO180DFE1Z/30R-PZB25U34
R902476616 AA4VSO180DFE1Z/30R-PZB25U99
R902567137 AA4VSO180DFE1Z/30R-PZB25UB6
R902541717 AA4VSO180DFE1Z/30R-VPB25U01
R902561168 AA4VSO180DFE1Z/30R-VZB25U68
R902510020 AAA4VSO180DFE1/30L-PSD75U17
R902477115 A4VSO180DFE1/30R+A4VSO180DFE1/30R
R902493881 A4VSO250DFE1/30R+A4VSO180DFE1/30R
R902519810 A4VSO250DFE1/30R+A4VSO180DFE1/30R
R902539335 A4VSO355DFE1/30R+A4VSO180DFE1/30R
R902480960 AEA4VSO180DFE1/30R-PPB25N00
R902432223 ALA4VSO180DFE1/30R-PPB13N00
R902555185 ALA4VSO180DFE1/30R-VZB25U17-S2078
R902565837 ALA4VSO180DFE1/30R-VZB25U24-S2078
R902519855 ALA4VSO180DFE1/30R-VZB25U31-S2078
R902491432 ALA4VSO180DFE1/30R-VZB25U34-S1461
R902539269 ALA4VSO180DFE1/30R-VZB25U34-S2078
R902540301 ALA4VSO180DFE1/30R-VZB25U68-S2078
R902510019

ALAA4VSO180DFE1/30L-PSD75U17
