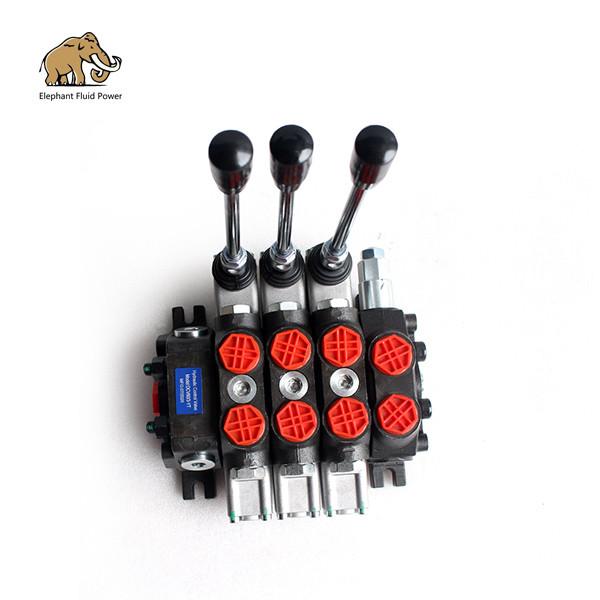

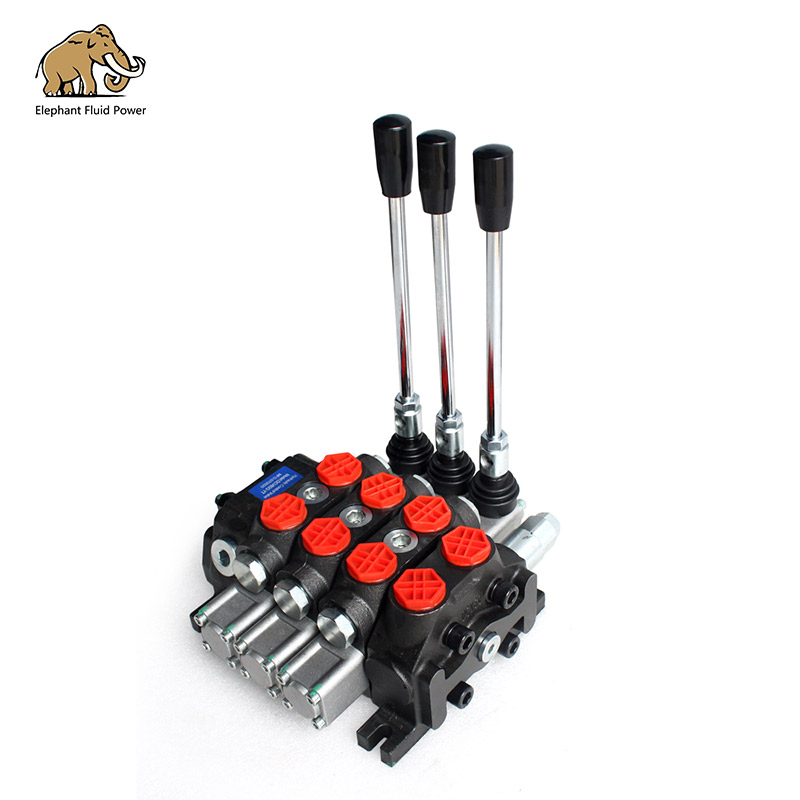

DCV60-3-YT-YW01 Hydraulic Direction Valve 3 Spool Control Valve Sectional Valves
Product details:
Model: DCV60-3-YT-YW01
Flow: 60LPM
Lever: 3
We have more distributor hydraulics (Directional control valve) for you, we produce, manufacture, export, provide you with high quality, low price products, our products are very competitive, no matter what control method (Control type: manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic, etc.) you need, any flow (40 liters - 140 liters available), any size (1 spool to 12 spool available), Please contact us for the best offer.
Specifiions:
Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS
Nom. Pressure
(MPa) | Max.Pressure
(MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) | hydraulic oil |
Tem.rang
(ºC) | Visc.rang
(mm2/S) | filtrating accuracy
(μm) |
| 35 | 31.5 | 200 | ≤1 | -40~+80 | 10~400 | ≤10 |
| DCV valve | Flow | Nom. Pressure | Spool |
| DCV 20 | 20L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 40 | 40L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 45 | 45L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 60 | 60L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 100 | 100L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 140 | 140L/Min | 100 ~315 BAR | 1-12 sections |
| DCV 200 | 200L/Min | 100 ~315 BAR | 1-12 sections |
DCV directional control valve have the features of below
1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure: Monoblock, sectional
